100kva high frequency three phase online ups long time back up ups with external battery

FOB Reference Price:Get Latest Price
  • 1 - 9 Pieces
    $7,600.00
  • 10 - 99 Pieces
    $7,500.00
  • >=100 Pieces
    $7,400.00
Lead Time:
Quantity(Pieces) 1 - 2 >2
Est. Time(days) 20 Negotiable
Customization:
Customized logo (Min. Order: 10 Pieces)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China
Brand Name:
CPSY Shangyu/OEM
Model Number:
HP33100H
Phase:
Three Phase
Protection:
Short Circuit
Weight:
283kg
Output Voltage:
220/230/240VAC
Type:
On-line
Application:
Network/Telecom / Data center
Product name:
Full Range UPS 1KVA-100KVA
Input voltage:
209-475Vac
Output Frequency:
50/60Hz
Input Frequency:
46-54hz(default)
Transfer Time:
Zero Conversion
Wave Form:
Pure Sine Wave
Warranty:
1 Years
Power factor:
0.9
Display:
LCD
Certification:
CE,ISO9001,ISO14001,CQC,TLC
Supply Ability
Supply Ability:
2000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
Small UPS with Canton Packaging,Large UPS with Carton and Wooden Frame
Port
Shenzhen
Picture Example:
package-img
Lead Time :
Quantity(Pieces) 1 - 2 >2
Est. Time(days) 20 To be negotiated
MASS_APP4_482_BEGIN

MASS_APP4_482_END

10kva -100kva high frequency three phase online ups long time back up ups with external battery

Functions & Features
  •  Double Conversion Design
  • Space saving
  • DSP Technology
  • Environment Friendly
  • Active input power factor correction(PFC)
  • Wide range of input voltage and frequency
  • Energy saving
  • Emergency Power Off (EPO)
  • The load PFC is 0.8
  • Intelligent Battery Management
  • Full protection function
  • Smart RS232 communication port;
  • External SNMP ,CMC or Dry contacts (optional)
  • High reliability and performance
Specification
ModelHP33100H               HP33120H               HP33160H               HP33200H
Nominal Capacity100KVA/80KW120KVA/96KW160KVA/128KW200KVA/160KW
PhaseThree phase in/three phase out
Input
Product TopologyDouble conversion
Input Power Factor>0.99
Input Voltage Range210V-478V AC
Harmonic DistortionTHDU<3%
Input Frequency Range45Hz-64Hz, 50/60Hz (Auto Sensing)
Machine Efficiency94%
ECO Mode>98%
Output
Output Voltage220V/230V/240V ±1 %
Output Frequency Range50/60Hz
Output Power Factor0.8
Transfer time0 ms
Overload Capability125%:10min, 150%:1min.
Battery Type
Battery TypeValve regulated lead acid(VRLA)battery
DC voltage±240VDC (default), ±216VDC/±264VDC (Adjustable)
Others
Speed adjustable fansupport
LCD indicatorsups statue and instruction in Both English and Chinese
LEDups running condition
Communication PortsRS232, AS400, RS458, service, EPO,EXT.BATTERY TEMP PROBE, Intelligent slot
Environment
Temperature/Humidity0 to 40°C / 5%~95%
Noise Level<60dB
SafetyIEC/EN 62040-1
EMCIEC/EN 62040-2
CertificateCE,CQC,TLC,ISO9001
Physical
Dimension(mm)600*800*1876mm
Net Weight (Kg)283KGS311KGS457KGS457KGS
Gross Weight (Kg)351KGS379KGS525KGS525KGS

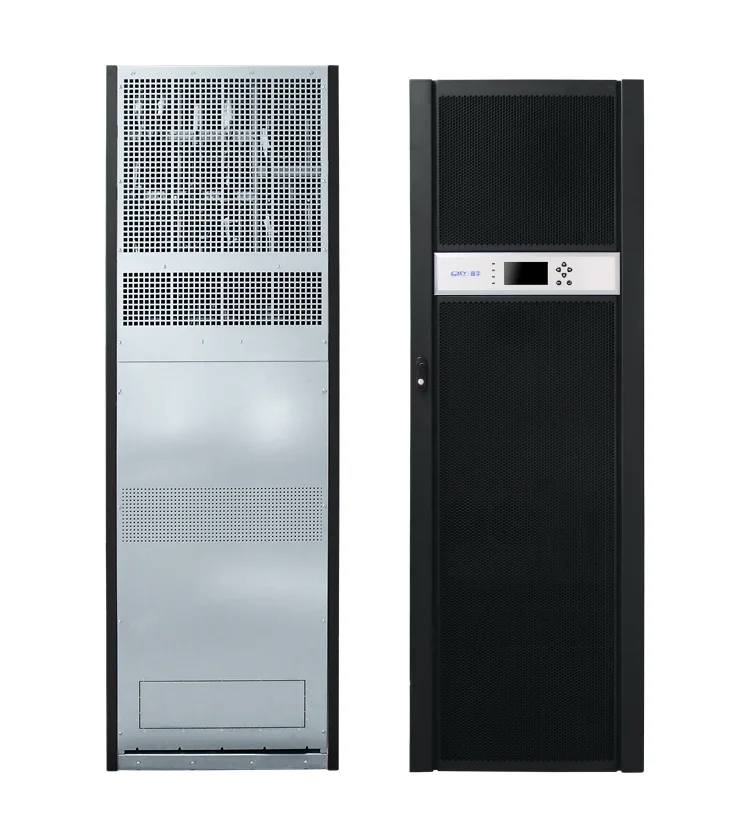

Detailed Images

Our Services



The service we can supply:

1. 10 years factory, engineers with 15years experience average

2. Supply OEM/ODM service----the logo,color,plugs and sockets,LED/LCD display,USB port,RJ45/11 port, etc.

3. Samples/Small order for testing welcomed.

4. Any customized design is welcomed.

5. 1-3 years warranty, provide technical training

6.Provide 365days, 7*24hrs hot-line service to user to advisory for the problems of the shangyu service, products, technical, business and fault repair, service Hot-line is 400-0505-800



Why choose Shangyu?

1. 20 years experience engineers

2. 5 years UPS and UPS Battery export experiences

3. 10 years UPS and UPS Battery manufacturer experiences

4. 3 years of high-level OEM Experience

5. 200 Employees.

6. 5,000 square meters Factory Size (Sq.meters)

7. 10,000pcs Monthly Capacity

8. Export Percentage: 50%

9. Hi-tech Advanced R&D Team

10. Certifications--Applied with CE, TCL,ISO 9001, ISO14001 etc

11. 1 years warranty for UPS & UPS Battery.

12. Supply the technology training.



After-sales service:

Customers Provide proper instructions to the technical support department through proper procedures to explain the cause and condition of any damage to the product. The detail procedure of warranty as belowing:

1.Send Photo or video of damage products with Serial number label to shangyu, will reply you in 12 hours.

2.The technical engineers will send the Detection table to you for feedback in 24hours.

3.Fault handling and suggestion table will be send to you in 48hours after technical department get the Detection table.

4. We will send you the spare parts by free if the problems caused by us during warranty period.If it is the men-made problems,we also send the spare

parts,but you should pay.

5.Other problems can be solved according to the Fault handling and suggestion table.

If any misunderstand, call us immediately.







Company Information

 Shenzhen Shangyu Electronic Technology Co., Ltd.(CPSY brand) is a professional manufacturer of uninterruptible power supply (UPS).Which located in guangdong, the factory covers an area of large scale, and product range from 500 va to 800 kva online UPS and backup UPS series to meet the demand of different business users.
Our Shangyu UPS products had been widely used in government, finance, telecommunications, electricity, transportation, scientific research institutes, manufacturing and military industries, etc.

As the well-known UPS manufacturers on the market in China, ShangYu electronic technology co., LTD has passed ISO9001 and ISO4001 Quality management system, and all our UPS products meet with the CE,TLC, CQC etc. Shangyu have its whole after-sale service system, provide the technical support, data sheet, maintenance and repair service and so on.

Shangyu company have production base in Shenzhen, which have more than 150 employees, engineers have more than 25years UPS experiences, can provide the high reliability and high intelligent UPS. The R & D center was set up in shenzhen, with more than 20 researchers, and 15% of sales revenue for research and development each year.

Shangyu company in the domestic market for many years, and have cooperated with BANK OF CHINA, CMCC, CCTV,SGCC and so on.

Our oversea market is mainly Thailand, Indonesia, Australia, Pakistan, Yemen, Colombia, Italy, Netherland, etc. We had cooperated with Ture Corp, Koryolink, MTN, InterEnergy, Intex,etc

Welcome to inquiry our UPS products any time!
Hope we can be best friend and long-term partner in UPS power industrial.











FAQ



Q1: Main products range

A: shangyu main products range is offline ups 600VA-2000VA, online ups 1KVA-20KVA, ups battery 12V 7Ah-300Ah(AGM /GEL).



Q2: MOQ

A: For UPS, If custom logo, MOQ is 500units for offline ups, 100units for online ups 1-3KVA, 20units for 6KVA-10KVA. Mix qty 20units for 15-20kva(3phase in and 1 phase out). If not, MOQ is required 1 unit without logo.

For battery 38Ah -300Ah is 10pcs, for battery 7Ah-24Ah is 50-500pcs.



Q3: Can I have a sample for testing?

A:Actually we think samples are not very important.

You can buy from anywhere.But we think our cargo will better than any others.

Samples price higher than the cargo.



Q4: payment term

A:We accept TT in advance,Western Union,L/C.



Q5: Are you manufacturer or trading company?

A: We are professional manufacturer of ups.



Q6: month capacity

A: It depends on which model.For example,month capacity for small capacity can reach near 5000pcs and big capacity near 1000pcs.



Q7: Warranty

A: 1 years warranty for ups and battery 7Ah-24Ah, 3 years for battery 38Ah-300Ah.



Q8:How about your after-sales service?

A:We will send you the spare parts by free if the problems caused by us during warranty period.

 If it is the men-made problems,we also send the spare parts,but you should pay.



Q9: How long is your delivery time

A: normally 15 days (it mainly based on your model and quantity)



Q10: Tell me the standard of package?

A.: For the small capacity, it use carton box, but for big capacity,

we should use strong wooden case for protection.



Q11:Can I add my logo on the voltage stabilizers?

A:Yes,OEM and ODM are available for us.

But you should send us the Trademark authorization letter.



Q12:Can I have a visit to your factory before the order?

A:Sure,welcome to visit our factory.

Here is our factory address: 4F block A, Building 1, Senyang High Technology Park, Guangming New District, Shenzhen, China.



Q13:Can we mix the 20ft container?

A:Yes,if the items are meet our min order qty.



Q14:Do you have inspection procedures for voltage stabilizers?

A:100% self-inspection before packing
