380V/220V 3-Phase in single phase out ups 10KVA High Frequency Online UPS with 4 hours backup

FOB Reference Price:Get Latest Price
  • 1 - 9 Sets
    $520.00
  • 10 - 99 Sets
    $500.00
  • >=100 Sets
    $485.00
Lead Time:
Quantity(Sets) 1 - 50 >50
Est. Time(days) 15 Negotiable
Customization:
Customized logo (Min. Order: 10 Sets)
Customized packaging (Min. Order: 500 Sets)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China
Brand Name:
CPSY
Model Number:
HP3110H
Phase:
Three Phase
Protection:
Overvoltage
Weight:
26/91/34/34/144KGS
Output Voltage:
208/220/230/240VAC
Type:
On-line
Application:
ATM,telecom,government,data
Product name:
Machine Power Supply 220V 3-Phase
HS Code:
85044020.00
Capacity:
30kva/24kw
Input voltage:
210-475VAC
Transfer Time:
Zero Conversion
Output Frequency:
50Hz/60Hz
Wave Form:
Pure Sine Wave
Power factor:
0.8
Certification:
CE,ISO9001,ISO14001
Optional:
SNMP
Supply Ability
Supply Ability:
700 Set/Sets per Day
Packaging & Delivery
Packaging Details
*Factory packing with carton and wooden case
*Customized Packing
Machine Power Supply 220V 3-Phase High Frequency Online UPS without Battery
Port
Shenzhen
Picture Example:
package-img
Lead Time :
Quantity(Sets) 1 - 50 >50
Est. Time(days) 15 To be negotiated
Product Description

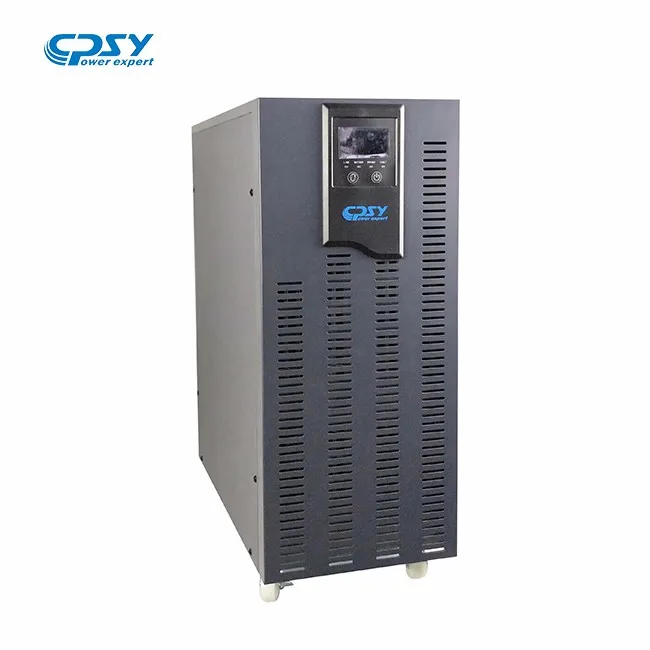

Machine Power Supply 220V 3-Phase High Frequency Online UPS without Battery


HP31 Tower series  10KVA - 20KVA

Features

•True double-conversion
•DSP technology guarantees high performance
•Output power factor 0.8&
•Wide input voltage range (110-300 VAC)
•Built-in phase auto adapt function simplifies wire installation
•Eco mode operation for energy saving (ECO)&EPO
•Charger capacity expansion to 8A for long-run models
•SNMP+RS-232 multiple communications
•Adjustable battery numbers&Generator compatible
•N+X parallel redundancy&isolation transformer available

Technical Data
MODEL
HP3110H
HP3110H-ISO
HP3115H
HP3120H
HP3120H-ISO
PHASE
3-phase in / 1-phase out
CAPACITY
10000 VA/
8000 W
10000 VA/
8000 W
15000VA/
12000 W
20000VA/
16000 W
20000 VA/
16000 W
INPUT
Voltage Range
Low Line Transfer
176 VAC (phase voltage) ± 3%@ 100% load 110 VAC (phase voltage) ± 3% @ 50% load
Low Line Comeback
186 VAC (phase voltage) ± 3%@ 100% load 120 VAC (phase voltage) ± 3%@ 50% load
High Line Transfer
300 VAC (phase voltage) ± 3%
High Line Comeback
290VAC (phase voltage) ± 3%
Frequency Range
46~54Hz or 56~64Hz
Power Factor
≧ 0.99 @ 100% load
OUTPUT
Output Voltage
208/220/230/240VAC
104/110/115/120VAC or208/220/230/240VAC
208/220/230/240VAC
104/110/115/120VAC or208/220/230/240VAC
AC Voltage Regulation (Batt. Mode)
± 1%
Frequency Range (Synchronized Range)
46~54Hz or 56~64Hz
Frequency Range (Batt. Mode)
50 Hz ± 0.1 Hz or 60 Hz ± 0.1 Hz
Current Crest Ratio
3:1
Harmonic Distortion
≦2%THD(LinearLoad)
≦5%THD(Non-linearLoad)
≦2%THD(LinearLoad)
≦ 6%THD(Non-linearLoad)
≦ 2%THD(LinearLoad)≦ 5%THD(Non-linearLoad)
≦2%THD(LinearLoad)
≦ 7%THD(Non-linearLoad)
Transfer Time
AC Mode to Batt. Mode
Zero
Inverter to Bypass
Zero
Waveform (Batt. Mode)
Pure sine wave
EFFICIENCY
AC Mode
89%
85%
89%
89%
87%
Battery Mode
86%
83%
88%
87%
83%
BATTERY
Long-run Model
Battery Type
Depending on applications
Numbers
Charging Current (max.)
4A
4A
8A
Charging Voltage
219.2 VDC ± 1%
INDICATORS
LCD Display
UPS status, Load level, Battery level, and Fault conditions
ALARM
Battery Mode
Sounding every 4 seconds
Low Battery
Sounding every second
Overload
Sounding twice every second
Fault
Continously sounding
PHYSICAL
Long-run Model
Dimension,D x W x H(mm)
515 x 250 x 608
815 x 250 x 826
Net Weight (kgs)
26
91
34
34
144
ENVIRONMENT
Humidity
0-95 % RH @ 0- 40°C (non-condensing)
Noise Level
Less than 58dB @ 1 Meter
Less than 60dB @ 1 Meter
MANAGEMENT
Smart RS-232 / USB
Supports Windows2 2000/2003/XP/Vista/2008, Windows2 7, Linux, Unix, and MAC
Optional SNMP
Power management from SNMP manager and web browser
