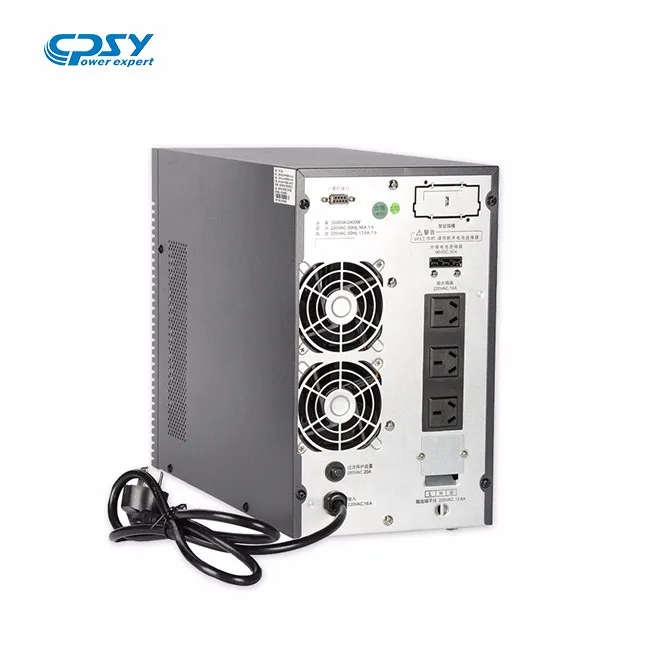

Inverter UPS Power 3KVA UPS Price

FOB Reference Price:Get Latest Price
  • 1 - 99 Sets
    $200.00
  • 100 - 199 Sets
    $190.00
  • >=200 Sets
    $180.00
Lead Time:
Quantity(Sets) 1 - 1 2 - 100 101 - 200 >200
Est. Time(days) 15 30 30 Negotiable
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China
Brand Name:
CPSY
Model Number:
HP1101B/H,HP1102B/H,HP1103B/H
Phase:
Single Phase
Protection:
Overvoltage
Weight:
6/9/9.5KGS
Output Voltage:
208/220/230/240VAC
Type:
On-line
Application:
Military
UPS Power:
Inverter UPS Power 3KVA UPS Price
Product name:
Uninterrupted Power System
Capacity:
1-10KVA
Battery Type:
Lead-acid Maintenance-free Battery
Wave Form:
Pure Sine Wave
Certification:
ISO9001/ISO14001/CE/ROHS
Display:
LED
Input voltage:
110-300V
Color:
Black
Warranty:
2 Years
Supply Ability
Supply Ability:
1000 Set/Sets per Day
Packaging & Delivery
Packaging Details
*Factory packing with carton and wooden case
*Customized Packing
Inverter UPS Power 3KVA UPS Price
Port
Shenzhen
Picture Example:
package-img
package-img
Lead Time :
Quantity(Sets) 1 - 1 2 - 100 101 - 200 >200
Est. Time(days) 15 30 30 To be negotiated
Product Description

Christmas Party Supply Inverter UPS Power 3KVA UPS Price

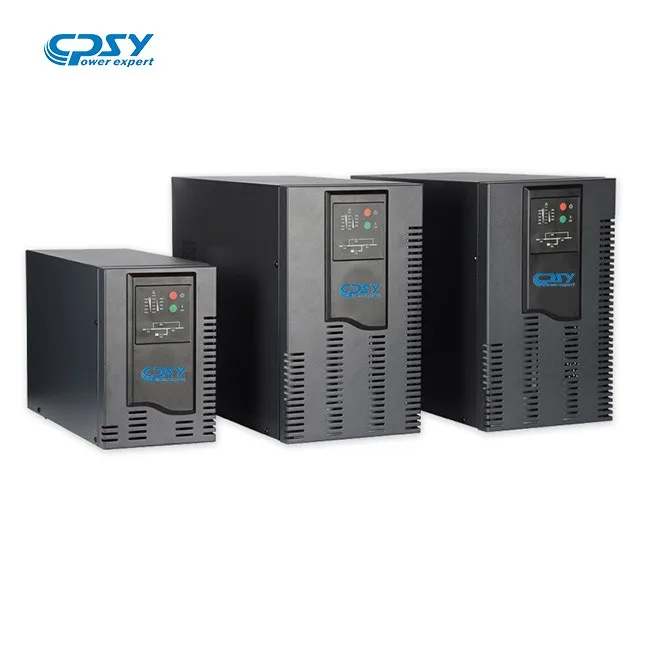

HP11 Tower series  1KVA - 3KVA

Features

•1KVA/2KVA/3KVA online UPS

• True double-conversion
•Accepts dual-mains inputs for special power environment with high Voltage and Low Voltage
•Complete galvanic isolation design offers full isolation and complete common mode noise rejection
•Wide input voltage range (176-288VAC) at full load
•Selectable output voltage at 220VAC or 230VAC or240VAC
•Input power factor correction 0.99
•Output voltage regulation < ± 1%
•Mini slot for USB/RS-232/AS400/SNMP communication
•Smart battery charger design for optimized battery performance

Technical Data
MODEL
HP1101B / H
HP1102B / H
HP1103B / H
CAPACITY
1000 VA / 800 W
2000 VA / 1600 W
3000 VA / 2400W
INPUT
Voltage Range
 110 - 300 VAC (Auto sensing)
Frequency Range
45Hz ~ 55 Hz or 56Hz ~ 65 Hz
Phase
Single phase with ground
Power Factor (nominal output @ full load)
≧ 0.99
OUTPUT
Output Voltage
208/220/230/240 VAC
AC Voltage Regulation (Static)
± 1%
Frequency Range (Synchronized Range)
48~ 52 Hz or 58 ~ 62 Hz
Frequency Range (Batt. Mode)
50 Hz ± 0.2 Hz or 60Hz ± 0.2 Hz
Current Crest Ratio
3:1
Harmonic Distortion
≦ 2 % THD (Linear Load),≦ 6 % THD (Non-linear Load)
Transfer Time
AC Mode to Batt. Mode
Zero
AC Mode to Bypass
4 ms (Typical)
Waveform (Batt. Mode)
Pure sinewave
EFFICIENCY(Peak)
AC Mode (@100% RCD load)
88% (Typical);
89% (Peak)
88% (Typical);
89% (Peak)
89% (Typical);
90% (Peak)
Battery Mode(@100% RCD load)
90% (Typical);
91% (Peak)
90 % (Typical);
91% (Peak)
91 % (Typical);
92% (Peak)
BATTERY



Standard Model
Battery Type
12V / 9Ah
12V / 9Ah
12V / 9Ah
Battery Numbers
2
4
6
Typical Recharge Time
5 hours recover to 90% capacity
Charging Current (max.)
1.0 A
Charging Voltage
27.4 VDC ± 1%
54.8 VDC ±1%
82.2 VDC ±1%

Long-run Model
Battery Type and No.
Depending on applications
Charging Current (max.)
4A or 8A
Charging Voltage
41.1 VDC ± 1%
82.2 VDC ±1%
109.6 VDC ±1%
INDICATORS
LED Panel
UPS status, Load level, Battery level, and Fault conditions
ALARM
Battery Mode
Sounding every 4 seconds
Low Battery
Sounding every second
Overload
Sounding twice every second
Fault
Continously sounding
PHYSICAL

Standard Model
Dimension
D x W x H(mm)
 146*360*227
193*400*327
193*400*327
Net Weight (kgs)
10
18
24
Long-run Model
Dimension
D x W x H(mm)
146*360*227
193*400*327
193*400*327
Net Weight (kgs)
6
9
9.5
ENVIRONMENT
Operation Humidity
20-95 % RH @ 0- 40°C (non-condensing)
Noise Level
Less than 50dBA @ 1 Meter
MANAGEMENT

Communication
RS232 Card/Optional USB Card, SNMP Card, or AS400 Card
Supports Windows2 2000/2003/XP/Vista/2008, Windows2 7, Linux, Unix, and MAC
Optional SNMP
Power management from SNMP manager and web browser
Detailed Images
Related Products

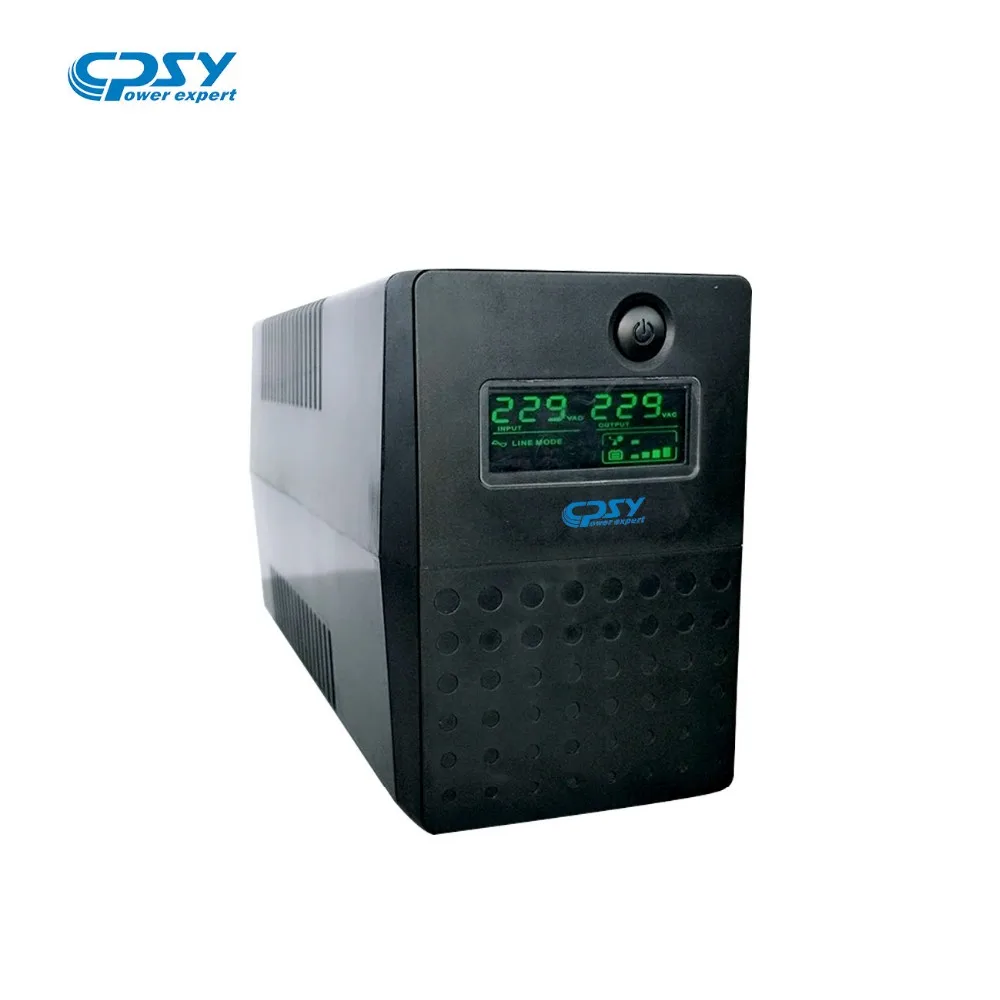

Backup Offline UPS S series  400VA - 2000VA

•400VA/500VA/600VA/650VA/800VA/1KVA/1.5KVA/2KVA
• Built-in super smart charger, shorten 50% of charging time
• Boost and buck AVR for voltage stabilization
• Auto restart while AC is recovering
• Modified sine wave
• Off-mode charging&Cold start function
• USB/RS-232 communication port&RJ-11/RJ-45 protection

• Offering LED and LCD display for selections

Online UPS HP11Tower series  1KVA - 3KVA

• True double-conversion
•Accepts dual-mains inputs for special power environment with high Voltage and Low Voltage
•Wide input voltage range (176-288VAC) at full load
•Selectable output voltage at 220VAC or 230VAC or240VAC
•Input power factor correction 0.99
•Output voltage regulation < ± 1%
•Mini slot for USB/RS-232/AS400/SNMP communication

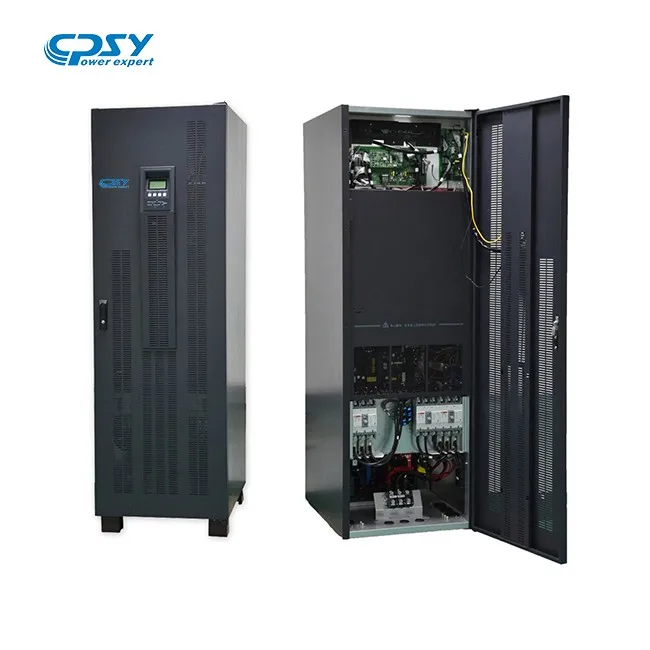

Online UPS HP11 Tower series  6KVA - 20KVA

• True double-conversion on line UPS
•DSP technology guarantees high performance
•Output power factor 0.8 & Active input power factor correction 0.99
•Adjustable battery number from 16 pcs to 20 pcs
•Adjustable charging current via software (0.5A~6A)
•Wide input voltage range (110-300 VAC)
•Emergency power off function (EPO)

•SNMP/USB/RS-232 communications

Online UPS HP31 Tower series  10KVA - 20KVA

•True double-conversion
•DSP technology guarantees high performance
•Output power factor 0.8
•Wide input voltage range (110-300 VAC)
•Eco mode operation for energy saving (ECO)
•Emergency power off function (EPO)
•SNMP+RS-232 multiple communications
•Optional N+X parallel redundancy&Generator compatible

Online UPS HP33 Tower series  10KVA - 80KVA

•VFI "online double conversion"

•IT and networking environments
•Data centres
•Wiring closets
•Enterprise server applications
•Industrial applications
•Medical industry

•Shopping centers

Online UPS GP11 Tower series  3KVA - 20KVA

•Galvanic isolation design to withstand all kinds of loads
•Fully coating PCBAs to withstand harsh environment
•Unique ventilation design for effective heat dissipation
•Wide input voltage and frequency range
•High short-circuit and overload capabilities
•Build-in maintenance bypass switch
•Output power factor 0.8

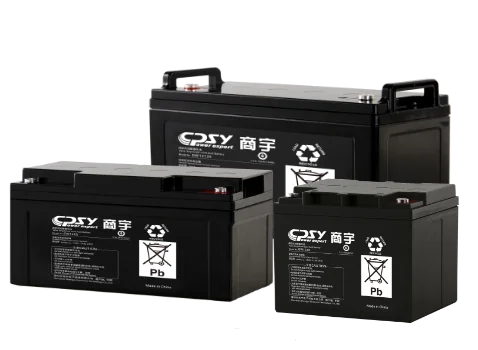

CPSY UPS Battery  7AH - 200AH

Rack Online UPS  1KVA-20KVA

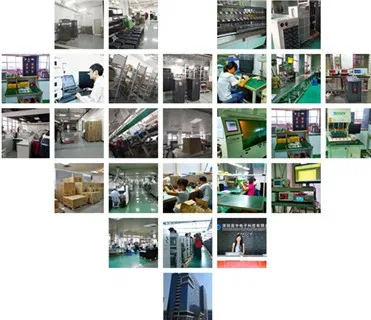

Our Company
