online high frequency UPS AC power supply LCD display IGBT inverter UPS 10KVA 8KW with battery backup

FOB Reference Price:Get Latest Price
  • 1 - 19 Pieces
    $550.00
  • 20 - 49 Pieces
    $540.00
  • >=50 Pieces
    $530.00
Lead Time:
Quantity(Pieces) 1 - 1 2 - 20 21 - 50 >50
Est. Time(days) 15 30 30 Negotiable
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China
Brand Name:
CPSY/OEM
Model Number:
HP1110B
Phase:
Single Phase
Protection:
Overvoltage
Weight:
71kg
Output Voltage:
220/230/240VAC
Type:
On-line
Application:
Networking
Technology:
DSP
Input voltage:
120-275Vac
Input Frequency:
46-64hz
Wave Form:
Pure Sine Wave
Input efficiency:
95% (Normal mode)
Display:
LED
Transfer Time:
Zero Conversion
Warranty:
1 Years
Certification:
ISO9001/ ISO14001/RoSH/CE
Output voltage:
200/208/220/230/240VAC
Supply Ability
Supply Ability:
5000 Set/Sets per Month inverter ups 10kva
Packaging & Delivery
Packaging Details
HP1110H: 1unit/Carton, 598*390*590mm, 21.3kg
HP1110B: 1unit/Pallet, 665*360*840mm, 71KG
online high frequency UPS AC power supply LCD display IGBT inverter UPS 10KVA 8KW with battery backup
Port
Shenzhen
Picture Example:
package-img
package-img
Lead Time :
Quantity(Pieces) 1 - 1 2 - 20 21 - 50 >50
Est. Time(days) 15 30 30 To be negotiated
Product Details

online high frequency UPS AC power supply LCD display IGBT inverter UPS 10KVA 8KW with battery backup


Main Features

• True double-conversion on line UPS
• DSP technology guarantees high performance
• Output power factor 0.8/0.9
• Standard backup UPS and long backup UPS in one integrated unit
• Adjustable battery number from 16 pcs to 20 pcs
• Adjustable charging current via software (0.5A~6A)
• Wide input voltage range (110-300 VAC)
• Active input power factor correction 0.99
• 50Hz/60Hz frequency converter mode
• Emergency power off function (EPO)
• 3-stage extendable charging design for optimized battery performance
• Maintenance bypass available
• SNMP/USB/RS-232 communications

Product Parameters
Model
HP1110B
HP1110H
Capacity
10KVA
Input
Input system
SIngle Phase & Ground
Rated Voltage
220/230/240VAC
Voltage Range
120VAC - 275VAC
Frequency
50/60Hz
Power Factor
0.99
Voltage Range of Bypass
187VAC - 264VAC
Output
Output System
Single Phase & Ground
Rated Voltage
220/230/240VAC
Power Factor
0.8/0.9
Voltage Precision
±1%
Output Frequency
Line mode: the output frequency synchronizes with the input frequency when the input frequency is in the the range of 46Hz to 64Hz
Battery mode: 46Hz to 64Hz
Inverter Overload Capacity (Utility power, 25°C)
105%<load<125%, tranfer to bypass in 60s
125%<load<150%, tranfer to bypass in 30s
Load>150%, tranfer to bypass in 300ms
Tranfer Time
0 ms
Crest Factor
3:1 (max)
Battery
Battery
Internal battteries 16PCS *12V9AH
External batteries 16pcs per string
Backup Time (25°C)
Full load >5mins
Depends on the capacity of external battery
Battery Charge Time
Charge to 90% battery capacity in 5 hours
Depends on the capacity of external battery
Model
W*H*D (mm) with package
Gross Weight (KG)
HP1110B
665*360*840mm
71
HP1110H
598*390*590mm
21.3

EMC

Item
Standard
Level
ESD
IEC61000-4-2
Level 4
RS
IEC61000-4-3
Level 3
EFT
IEC61000-4-4
Level 4
Surge
IEC61000-4-5
Level 4

Safety

Comply with GB4943-2001, IEC62040-1 and CE requirements.

Industry Standard

Comply with EN62040, YD/T1095-2000 requirements.

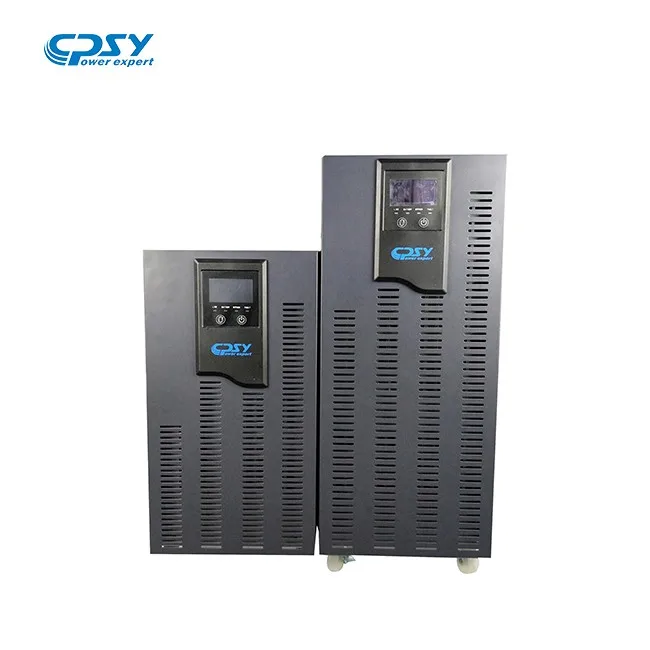

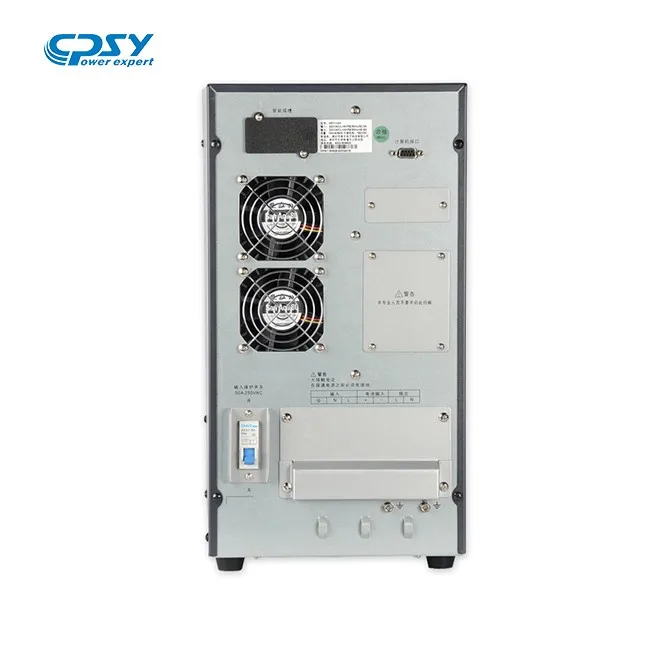

Product Details Show
Why Choose Us

A Professional Manufacturer of Uninterruptible Power Supply

Shenzhen Shangyu Electronic Technology Co. Ltd is a professional manufacturer of uninterruptible power supplies. We are located in Shenzhen and have a registered capital of $2.3 million and a production area of 5,000 square meters. We have our own R&D team with more than 30 R&D engineers with more than 10 patents, and put 15% sales revenue each year to R&D research.

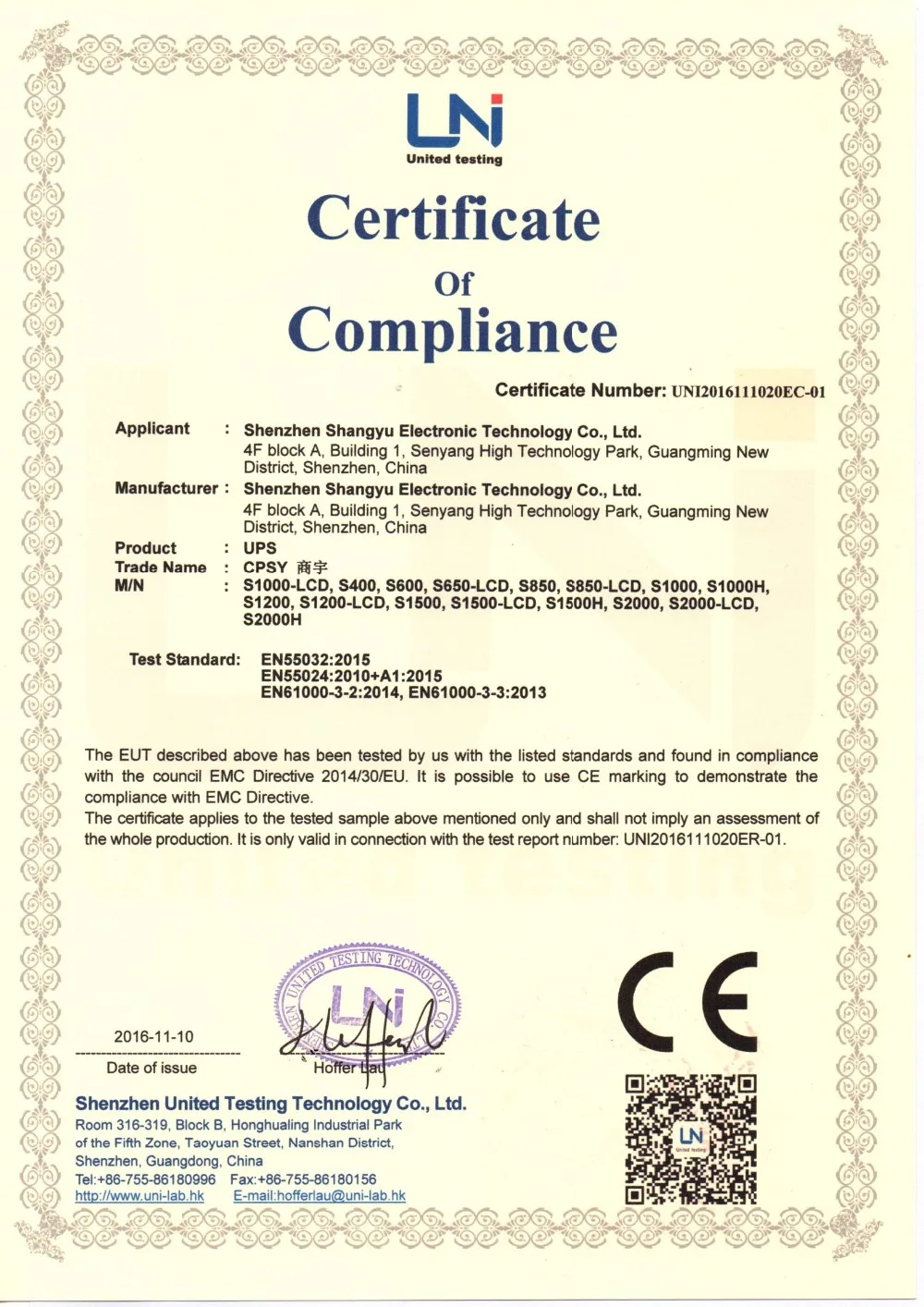

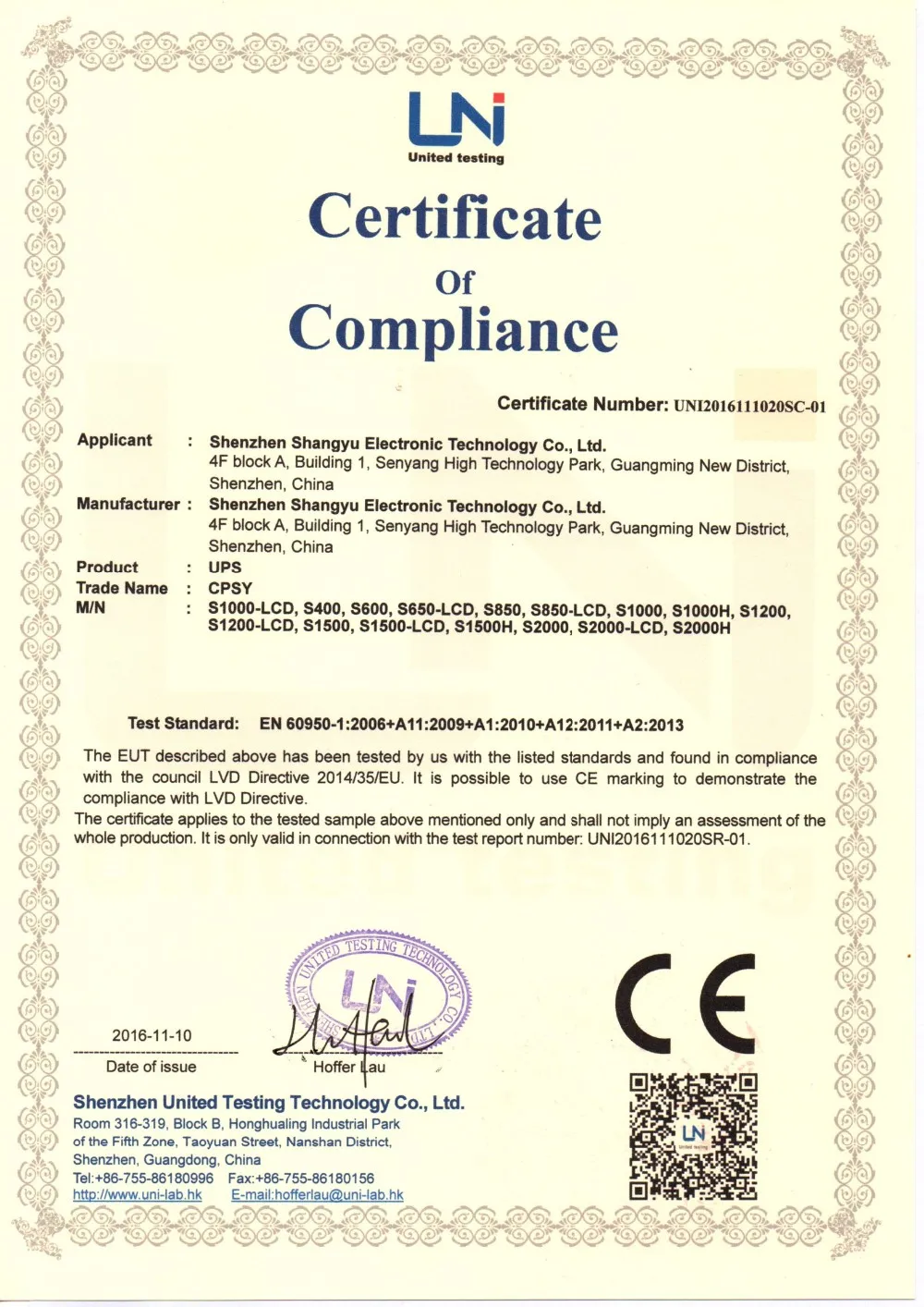

Passed Different Certifications

As an ISO9001:2008 and ISO14001:2004-certified manufacturer, we follow strict quality control system and all our UPS products meet with the CE,TLC, CQC and more certificates. We have thorough after-sale service system and provide full technical support, maintenance service with more than 20 branches and offices around China to supply our customers' stable and reliable products and services.

Offering OEM and Customized Services

Our products have been widely used in different fields, including government, finance, telecommunications, electricity, transportation, scientific research institutes, manufacturing and military industries. With more than 20 years of experience in UPS trading and more than five years' experience in manufacturing and exporting, we serve for Bank of China, CMCC, CCTV and SGCC. We offer OEM and customized services to satisfying different customers' specific requirements. We keep growing our market and services network, and we are seeking distributors and partners around the world.

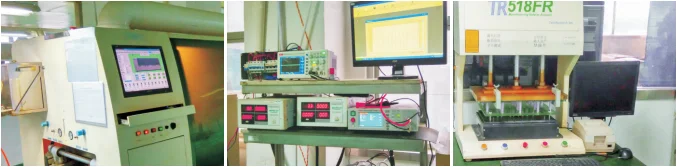

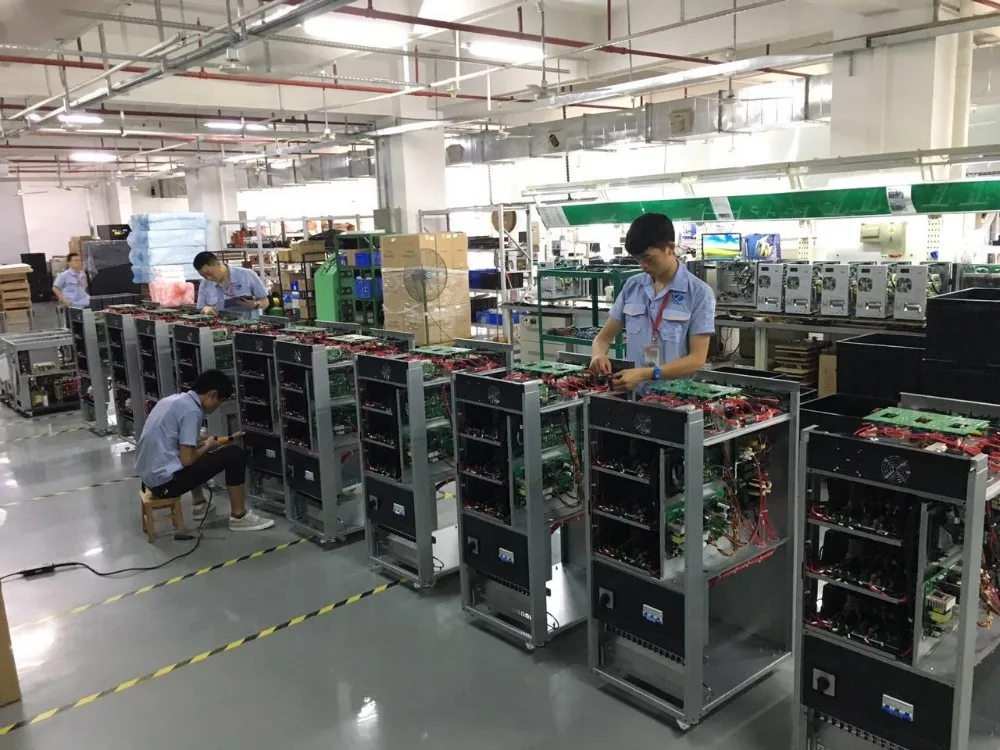

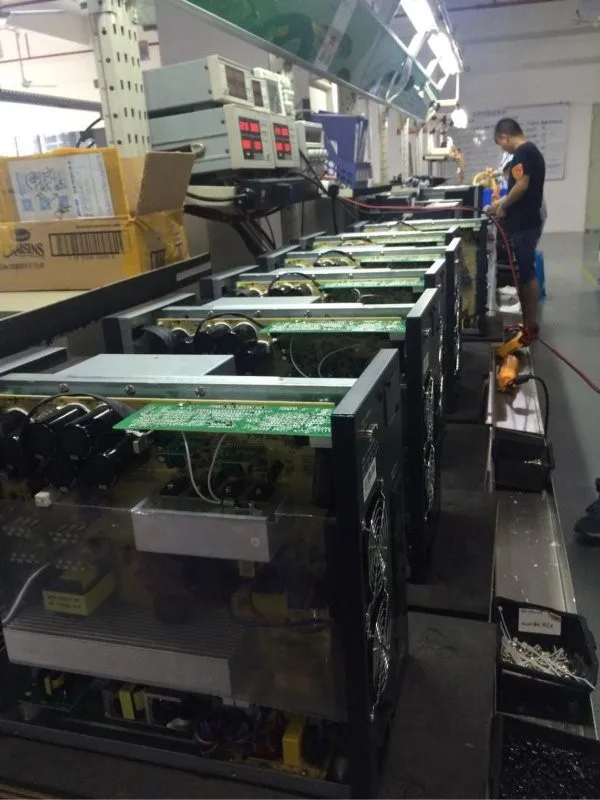

Product Processing

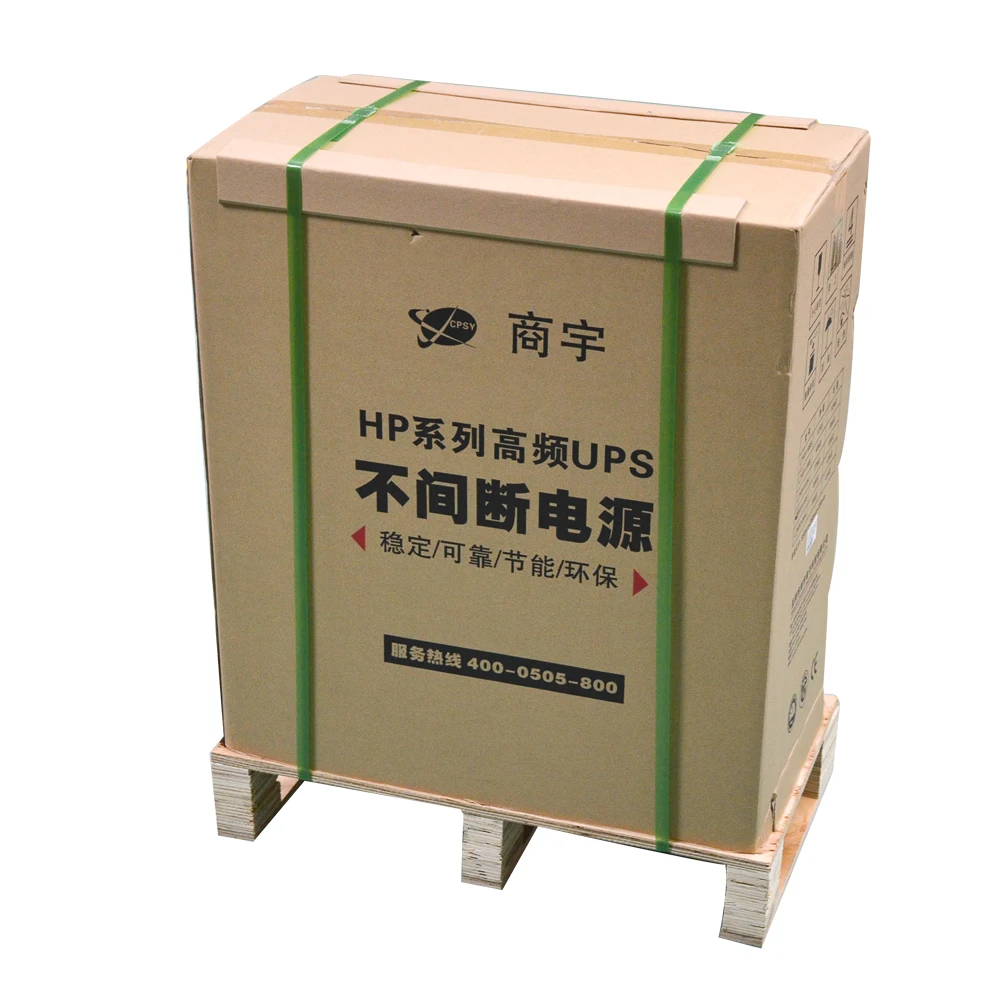

Product Packing
Main Products

Offline UPS S500

Capacity: 500VA/300watt
Battery: 1pcs*12V7Ah
Wave: simulated sine wave
MOQ: 500pcs
FOB Shenzhen

16USD/pcs

Offline UPS S2000

Capacity: 2000VA/1200watt
Battery: 2pcs*12V9Ah
Wave: simulated sine wave
MOQ: 500pcs
FOB Shenzhen
78USD/pcs

Online UPS HP1101B

Capacity: 1000VA/800watt
Battery: 2pcs*12V9Ah
Wave: Pure sine wave
MOQ: 100pcs
Different plugs and sockets optional
SNMP, USB/RS232, RJ45, RJ11 optional

FOB Shenzhen

82USD/pcs

Online UPS HP3340H

Capacity: 40KVA/38KW
Battery: External
Wave: Pure sine wave
MOQ: 5pcs
Applications: Data center

FOB Shenzhen

2985USD/PCS

Isolation tranfromer based Online UPS GP1106K

Capacity: 6KVA/4.8KW
Battery: External
Wave: Pure sine wave
MOQ: 15pcs
Industrial UPS

FOB Shenzhen

553USD/pcs

UPS battery 12V7Ah

Model: GW127

Dimension:151*65*99mm

Weight: 2.1kg

MOQ: 1000pcs

FOB Shenzhen

8.5USD/pcs


FAQ

What is a UPS?

An uninterruptible power supply, also uninterruptible power source, UPS or battery/flywheel backup, is an electrical apparatus that provides emergency power to a load when the input power source, typically the utility main, fails.

Why do I need a UPS?

A UPS is typically used to protect hardware such as computers, data centres, telecommunication equipment or other electrical equipment where an unexpected power disruption could cause injuries, fatalities, serious business disruption or data loss. UPS units range in size from units designed to protect a single computer without a video monitor (around 200 volt-ampere rating) to large units powering entire data centres or buildings.

UPS or uninterruptible power supply – Usage
Industrial Machinery – ( handle surges in power requirements due to peak demands caused by starting machinery, switching power supplies, etc.)
Banking – ( In order to run smooth operations in services sectors such as banking )
Marine – ( often used when on board generators fail )
healthcare – ( protect and manage power within a facility – so staff can focus on delivering quality care )
Telecommunications – ( keeping the telecommunications systems running, an adequate and responsive backup power supply is an essential part of corporate operations )

How many types of UPS are there?

There are three typical types of UPS: OFF-LINE, ON-LINE, and LINE INTERACTIVE.

What is an " ON LINE UPS ?"

An Online UPS takes incoming power, converts it to DC, conditions it, and converts it back to AC. This means the UPS is Online since there is no delay to switch to battery. Use an online UPS for your critical applications, high availability servers, etc. The output of these online UPS systems are TRUE sine wave, and is usually better than power from the electric company.
