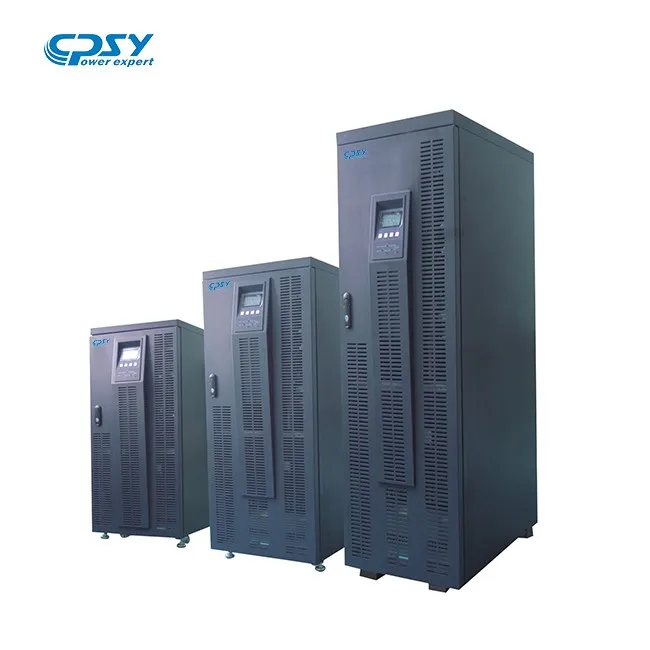

HF 3 Phase 30 KVA UPS

FOB Reference Price:Get Latest Price
$2,879.00 - $3,070.50 / Pieces | 5 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China
Brand Name:
CPSY Shangyu
Model Number:
HP3330H/HP3340H
Phase:
Three Phase
Protection:
Overvoltage
Weight:
160.0-164.0kg
Output Voltage:
220V/230V/240V*(1±1%)VAC, 220V/230V/240V*(1±1%)VAC
Type:
On-line
Application:
Telecommunications
Capacity:
30KVA/40KVA
Input Voltage:
210-475VAC
Frequency Range:
40-70Hz, 50/60Hz (Auto Sensing)
THDI:
<3%
Input Power Factor:
>0.99
Double mains input:
Support
Battery Type:
Valve regulated lead acid(VRLA)battery
Output power factor:
0.8
ECO Mode:
98%
Supply Ability
Supply Ability:
100 Piece/Pieces per Week
Packaging & Delivery
Packaging Details
Packaging Details:Small UPS with Carton Packaging,Large UPS with Carton and Wooden Frame.
HF 3 Phase 30 KVA UPS
Port
Shenzhen
MASS_APP4_482_BEGIN
MASS_APP4_482_END
Three phase ups

Technical Specifications:

1.True Online UPS with Triple Conversion
2.Wide Input Voltage Range
3.Built-in OVCD for High Voltage Protection
4.Active Input Power Factor Corrector
5.Selectable Output Voltage
6. output power factor 0.8
7.Built-in and External Battery Options
8.Advanced battery management (ABM)
9.Smart Battery Charger Design
10.Comprehensive Display for easy monitoring and access of UPS Status
11.Generator Compatible
12.Cold start feature (DC power on)
13.RS232/USB/SNMP (LAN) for UPS monitoring
14.ECO mode operation for energy saving
15.Self-diagnosis at UPS start ups

Model
HP3310H
HP3315H
HP3320H
HP3330H
HP3340H
HP3360H
HP3380H
Nominal Capacity
10KVA/
8KW
15KVA/
12KW
20KVA/
16KW
30KVA/
24KW
40KVA/
32KW
60KVA/ 48KW
80KVA/ 64KW
Phase
Three phase in/three phase out
Input
Product Topology
Double conversion
Input Power Factor
>0.99
Input Voltage Range
210V-478V AC
Harmonic Distortion
THDU<3%
Input Frequency Range
45Hz-64Hz, 50/60Hz (Auto Sensing)
Machine Efficiency
93%
94%
ECO Mode
>98%
Output
Output Voltage
220V/230V/240V ±1 %
Output Frequency Range
50/60Hz
Output Power Factor
0.8
Transfer time
0 ms
Overload Capability
125% : 10min, 150% : 1min.
Battery Type
Battery Type
Valve regulated lead acid(VRLA)battery
DC voltage
±192VDC (default), ±168VDC/±180VDC (Adjustable)
Others
Speed adjustable fan
support
LCD indicators
ups statue and instruction in Both English and Chinese
input/output voltage, current, frequency,battery voltage,charging current value, discharging current value, fault display,fault,warning
LED
ups running condition
Communication Ports
RS232, AS400, RS458, service, EPO,EXT.BATTERY TEMP PROBE, Intelligent slot
Environment
Temperature/
Humidity
0 to 40°C / 10%~95%
Noise Level
<60dB
Safety
IEC/EN 62040-1
EMC
IEC/EN 62040-2
Certificate
CE,CQC,TLC,ISO9001
Physical
Dimension(mm)
420*643*956mm
470*710*1150mm
600*800*1850mm
Net Weight (Kg)
78KGS
80KGS
82KGS
110KGS
114KGS
282KGS
306KGS
Gross Weight (Kg)
118KGS
120KGS
122KGS
160KGS
164KGS
356KGS
380KGS

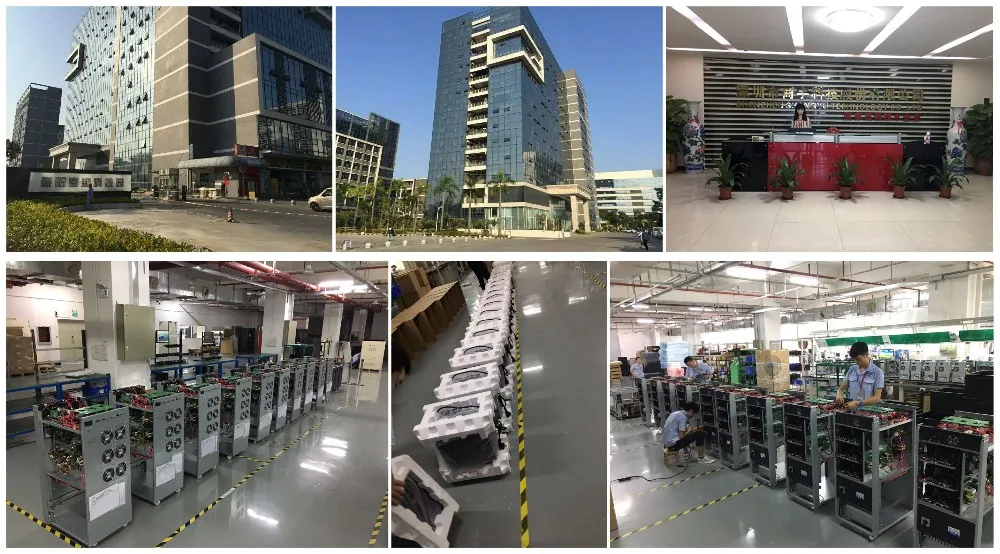

Factory
Packing
Packaging
Size
470(L) * 740(W) * 1150(D)
Weight
160.0KG



Packaging Details
Packaging Details:Small UPS with Carton Packaging,Large UPS with Carton and Wooden Frame.
