HF 3 Phase 20KVA Online UPS

FOB Reference Price:Get Latest Price
$1,600.50 - $3,000.90 / Pieces | 1 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China
Brand Name:
CPSY Shangyu/OEM
Model Number:
HP 33 series
Phase:
Three Phase
Protection:
Overcurrent
Weight:
Depending
Output Voltage:
380/400/410VAC
Type:
On-line
Application:
Security / Monitoring / Alarm
Capacity:
10-40KVA
Input voltage:
210-475Vac
Output Frequency:
50/60Hz
Input Frequency:
40-70hz(default)
Transfer Time:
Zero Conversion
Wave Form:
Pure Sine Wave
Size:
depending
Output Power factor:
0.8
Display:
LCD+LED
Certification:
CE,ISO9001,ISO14001,CQC,TLC
Supply Ability
Supply Ability:
1000 Piece/Pieces per Week
Packaging & Delivery
Packaging Details
Wooden case/unit
HF 3 Phase 20KVA Online UPS
Port
Shenzhen
MASS_APP4_482_BEGIN
MASS_APP4_482_END
Product Details

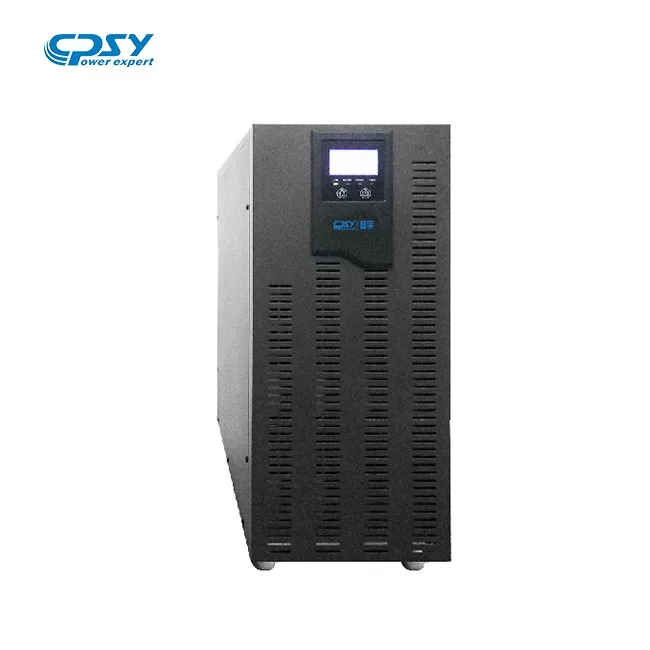

3phase online ups 10KVA 20KVA 30KVA 40KVA for data center

The CPSY HP Series is a three-phase, double conversion uninterruptible power supply (UPS), and is available in 10 - 80 k VA output power rates. Its design fits perfectly to any environment where uninterrupted power feed is required to secure critical equipment’s continuous operation. The HP Series UPS provides a perfect solution for power protection, and solves power quality problems such as surges, spikes, voltage fluctuations, harmonic distortion, clutter interference and frequency fluctuations.


With HP series , each phase is independently double converted and regulated. In addition, PFC (power factor control) controller is used for real time control and data processing, ensuring high availability at all times. Further extent reliability is accomplished by introducing intelligent charge mode which significantly prolongs service life of batteries. Also, possibility to have dual feed on UPS input adds availability thus increases reliability of system.

As an added benefit, IP21 com - pliant design makes HP Series a perfect fit to industrial and other applications, where harsh environmental conditions may set extent requirements to mechanical design. Optional filter is also available for further protection against the smallest damaging particles.

Specifications
Models
HP3310H
HP3315H
HP3320H
HP3330H
HP3340H
Capacity
10KVA
15KVA
20KVA
30KVA
40KVA
Input
Voltage
210-475VAC
Frequency
40-70Hz, 50/60Hz auto-sensing
Phase
3 phase + N +PE
THDI
<3%
Power Factor
>0.99
Double mains input
Support
Battery
Type
Valve regulated lead acid(VRLA)battery
DC voltage
±192VDC(default), ±168、±180(adjustable)
Output
Voltage
384/400/415*(1±1%)VAC
Frequency
50/60Hz
Phase
3 phase 4 wire + grounding
Power Factor
0.8
Overload capability
125%@10min;
150% @1min
Machine Efficiency
93%
ECO mode
98%
Others
Speed Adjustable Fan
Support
LCD
UPS status and instructions in both English and Chinese
Input/output voltage, current, frequency, battery voltage, charging current value, discharging current value, fault display, fault, warning
LED
UPS running condition
Warning devices
Indicator flash and Buzzer sound
Communication ports
RS232,AS400,RS485,Service,EPO,EXT.BATTERY TEMP PROBE,Intelligent slot
Environment
Temperature
0-40℃
Humidity
10-95%
Physical
Net weight
78kg
80kg
82kg
110kg
114kg
Gross weight
118kg
120k
122kg
160kg
164kg
Dimensions
420*675*955mm
472*740*1150mm
Product Introduction


Intelligent battery charge and recharge management
With intelligent battery management system, charger parameters can be automatically adjusted based on varying environmental and load conditions to maximize battery service life and minimize time required to re-charge. In addition, various optimized modes are available vased on the type and amount of batteries, providing extended battery life and reducing re-charge time if additional batteries are added.


Dual feed input
Dual feed input or dual AC source input, is available with HP Series . AC input source is selectable by user based on the installation requirements.

Communications and remote management
Standard S eries model is always equipped with an intelligent communications slot and RS-232 and RS-485 ports. Optional communications and SNMP/WEB cards are also available to enable remote monitoring and remote management. In addition, programmable AS/400 is also available for purchase.

Excellent electrical performance
With total efficiency reaching 92 percent in normal mode, the H P S erie s can achieve up to 98 percent efficiency in Energy Saver Mode, reducing electrical costs and total cost of ownership.
Further providing peace of mind in harsh electrical environments, the HP Series provides enhanced overload protection. In fact, the HP Series can operate for ten minutes at a 110 to 125 percent overload and one minute at a 150% overload with short circuit protection.

Intelligent battery and service management
In today’s fast-paced environment, reducing mean time to repair and total cost of ownership for any product is essential. With the flexible battery management capability, you can have 32 battery blocks enhancing uptime and reducing maintenance costs.
Product Details Show
Why Choose Us

R&D

Shenzhen Shangyu Electronic Technology Co. Ltd is a professional manufacturer of uninterruptible power supplies. We are located in Shenzhen and have a registered capital of $2.3 million and a production area of 5,000 square meters. We have our own R&D team with more than 30 R&D engineers with more than 10 patents, and put 15% sales revenue each year to R&D research.

Cetificates

As an ISO9001:2008 and ISO14001:2004-certified manufacturer, we follow strict quality control system and all our UPS products meet with the CE,TLC, CQC and more certificates. We have thorough after-sale service system and provide full technical support, maintenance service with more than 20 branches and offices around China to supply our customers' stable and reliable products and services.

Service

Our products have been widely used in different fields, including government, finance, telecommunications, electricity, transportation, scientific research institutes, manufacturing and military industries. With more than 20 years of experience in UPS trading and more than five years' experience in manufacturing and exporting, we serve for Bank of China, CMCC, CCTV and SGCC. We offer OEM and customized services to satisfying different customers' specific requirements. We keep growing our market and services network, and we are seeking distributors and partners around the world.

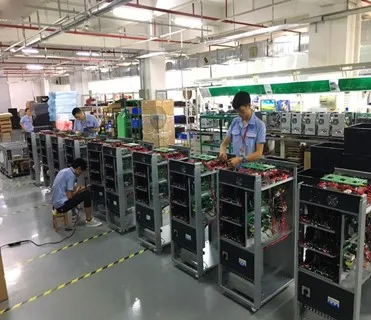

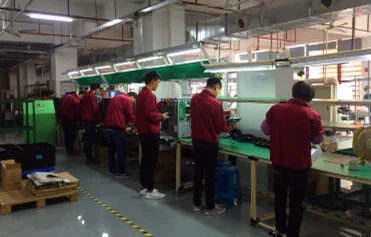

Product Processing

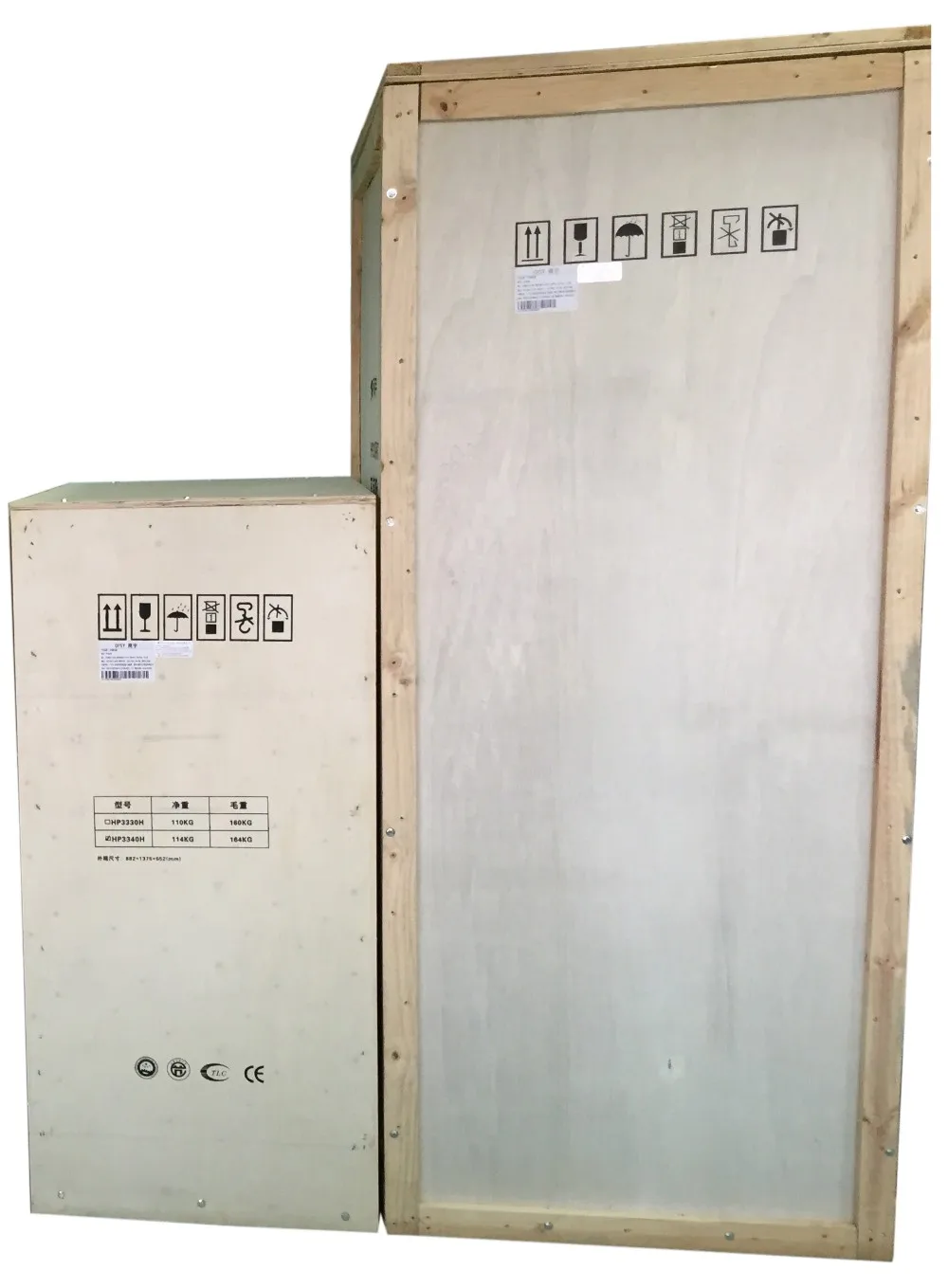

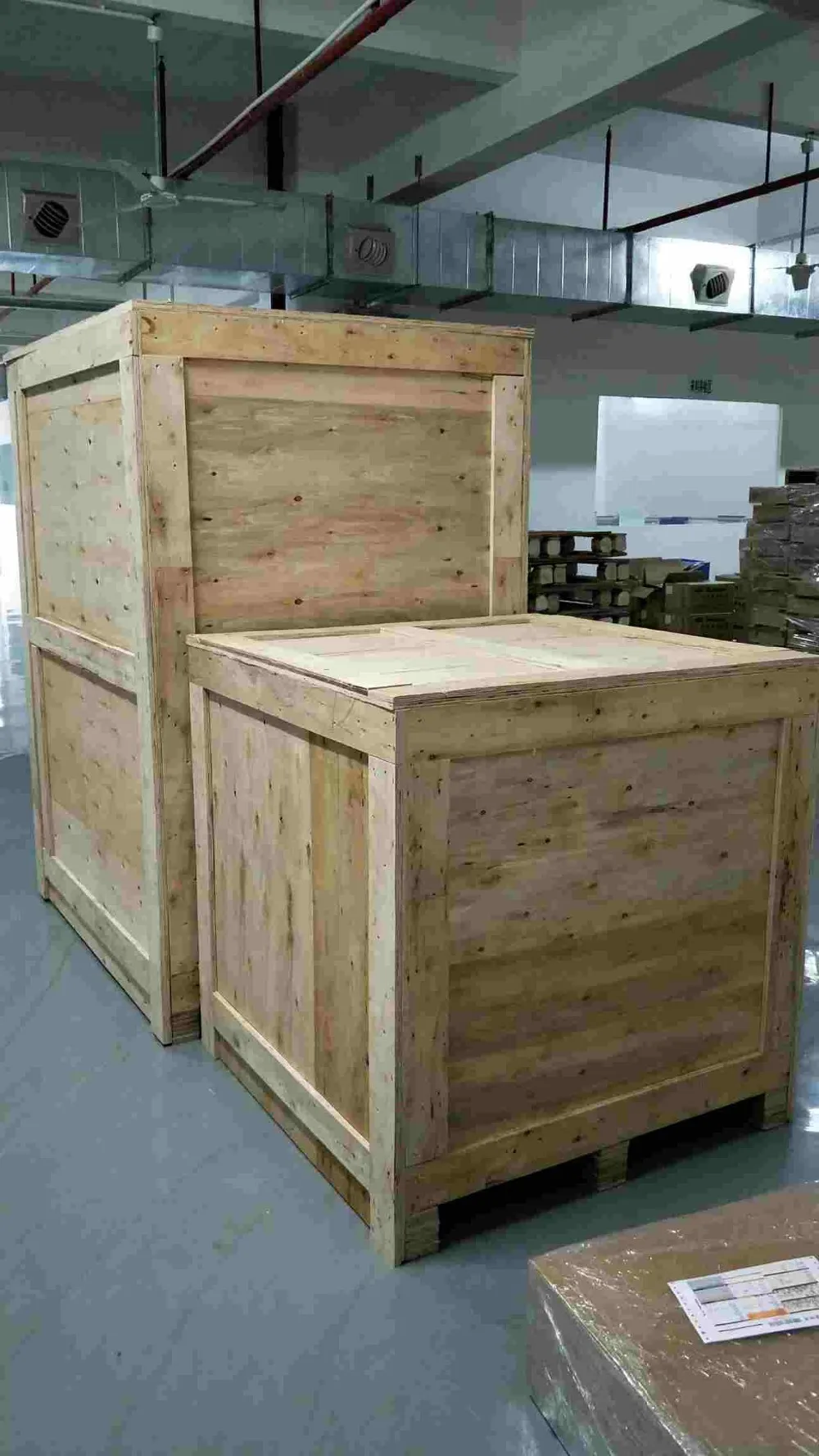

Product Packing
